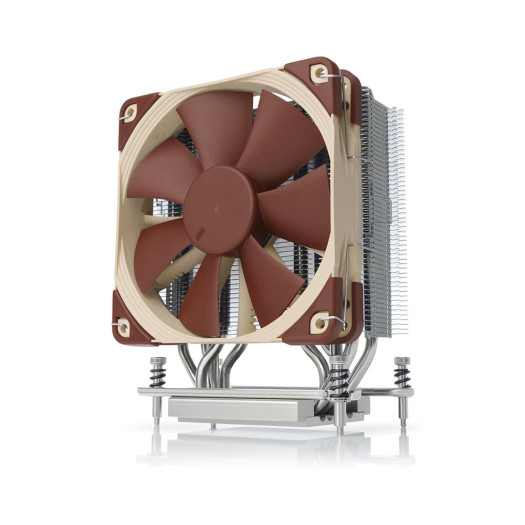

Noctua NH-U12S TR4-SP3 CPU Coolers, NF-F12 PWM Fan, 1500 RPM Fan Speed, 54.97 CFM Airflow Speed, Anti-Vibration Pads, Copper Heat-Pipes, Aluminum Cooling Fins, Brown | NH-U12S TR4-SP3
Noctua NH-U12S TR4-SP3 CPU Coolers, NF-F12 PWM Fan, 1500 RPM Fan Speed, 54.97 CFM Airflow Speed, Anti-Vibration Pads, Copper Heat-Pipes, Aluminum Cooling Fins, Brown | NH-U12S TR4-SP3
Availability:Out Of Stock
Noctua NH-U12S TR4-SP3 CPU Coolers, NF-F12 PWM Fan, 1500 RPM Fan Speed, 54.97 CFM Airflow Speed, Anti-Vibration Pads, Copper Heat-Pipes, Aluminum Cooling Fins, Brown | NH-U12S TR4-SP3
(0 reviews)
BHD 55.000
– +

NH-U12S TR4-SP3



Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s sTRX4/sWRX8/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket sTRX4/sWRX8/TR4/SP3. Topped off with the renowned quiet NF-F12 PWM 120mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12S TR4-SP3 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for high-end sTRX4/sWRX8/TR4/SP3 systems.





Specifications



Cooler Specification
Socket CompatibilityAMD sTRX4, sWRX8, TR4, SP3
Height (without fan)158 mm
Width (without fan)125 mm
Depth (without fan)45 mm
Weight (without fan)695 g
Height (with fan)158 mm
Width (with fan)125 mm
Depth (with fan)71 mm
Weight (with fan)870 g
MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR129
Max. TDPSee NSPR
Fan Compatibility120x120x25 mm
Scope of Delivery
Included AccessoriesNF-F12 PWM fan, Low-Noise Adaptor, NT-H1 thermal compound, SecuFirm2™ mounting kit, anti-vibration pads, fan clips, Noctua metal case-badge
Fan Specification
ModelNoctua NF-F12 PWM
BearingSSO2
Max. Rotational Speed (+/- 10%)1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%)1200 RPM
Min. Rotational Speed @ 20% PWM (+/-20%)300 RPM
Max. Airflow93.4 m³/h
Max. Airflow with L.N.A.74.3 m³/h
Max. Acoustical Noise22.4 dB(A)
Max. Acoustical Noise with L.N.A.18.6 dB(A)
Input Power (Max.)0.6 W
Voltage Range12 V
MTTF> 150,000 h
