Availability:Out Of Stock

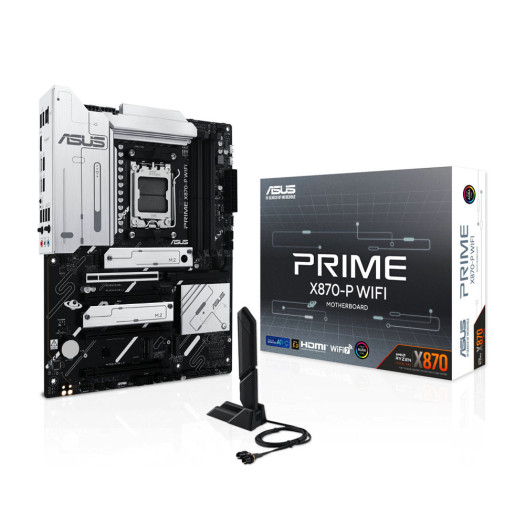

ASUS PRIME X870-P WIFI ATX Motherboard, AMD X870 Chipset, 4x DIMM DDR5 Slots, 192GB Max Memory, Realtek 2.5Gb Ethernet, 4x M.2 Slots, 1x PCIe 5.0, 3x PCIe 4.0 x16, BT 5.4, HDMI | 90MB1IS0-M0EAY0
BHD 99.900
Prime X870-P WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors.
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| Model | PRIME X870-P WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors* |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors | |
| ECC and Non-ECC, Un-buffered DIMM* | |
| Dual channel memory architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Graphics | 1 x HDMI™ port** |
| 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** | |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | |
| 3 x PCIe 4.0 x16 slots (support x1 mode)*** | |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** | |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** | |
| M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be), supports 2.4/5/6GHz frequency band** | |
| Bluetooth® v5.4*** | |
| USB | Rear USB (Total 10 ports) |
| 2 x USB4® (40Gbps) ports (2 x USB Type-C®) | |
| 1 x USB 10Gbps port (1 x Type-A) | |
| 3 x USB 5Gbps ports (3 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Supports up to 24-Bit/192 kHz playback | |
| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| 1 x USB 10Gbps port (1 x Type-A) | |
| 3 x USB 5Gbps ports (3 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x HDMI™ port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connectors | |
| Miscellaneous | 3 x Addressable Gen 2 headers |
| 1 x Clear CMOS header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS 5X PROTECTION III |
| ASUS Q-Design | |
| ASUS Thermal Solution | |
| Aura Sync | |
| Software Features | ASUS Exclusive Software |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 2 x SATA 6Gb/s cables |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Quick start guide | |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
