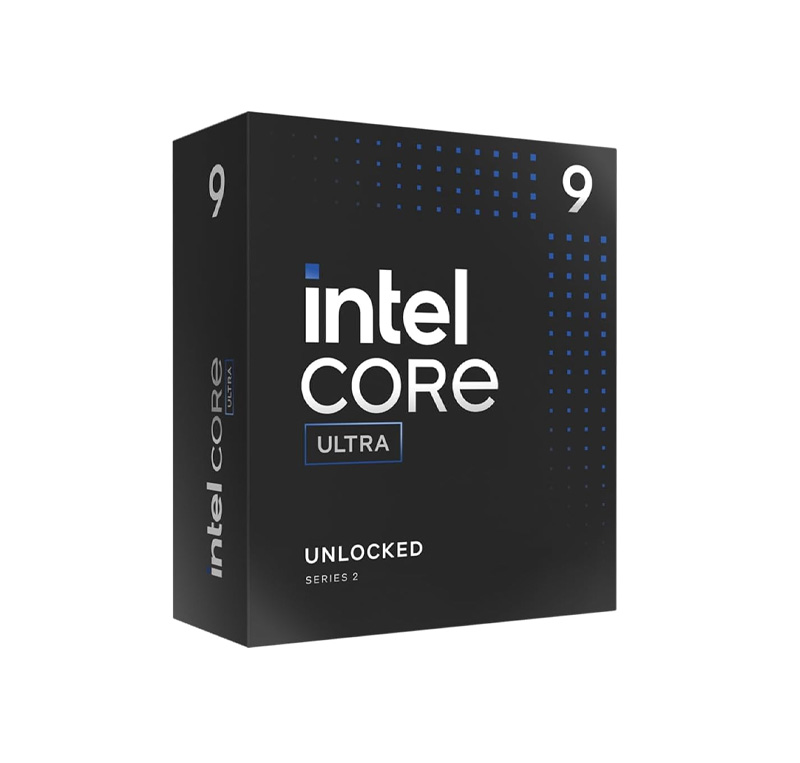

Intel Core Ultra 9 285K
Made to game. Ready for anything.
Embrace the latest generation of performance with the brand new Intel Core Ultra Series 2 Desktop processors, The arrow lake architecture features an improved hybrid architecture incorporating a mixture of high-performance P-Cores and Efficient E-Cores. Following the tech industries boom in accelerated artifical inteligence these core ultra series 2 chips boasts a new dedicated NPU offering up 36 TOPS of AI performance, It excels at AI tasks and frees your CPU and GPU up for other tasks. The Intel Core Ultra 9 285K boasts 24 cores and 24 threads, it's capable of reaching boost clock speeds of up to 5.7GHz and continues to provide impressive versatlity with support for more and faster DDR5 memory, WiFi 7 connectivity, increased PCIe 5.0 lanes and native support for Thunderbolt 4 and USB 4.0. Be ready for anything with Intel.
Specifications
| Total Cores | 24 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 16 |
| Total Threads | 24 |
| Max Turbo Frequency | 5.7 GHz |
| Intel® Thermal Velocity Boost Frequency | 5.7 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency | 5.6 GHz |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Base Frequency | 3.7 GHz |
| Efficient-core Base Frequency | 3.2 GHz |
| Cache | 36 MB Intel® Smart Cache |
| Total L2 Cache | 40 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 250 W |
| Intel® Deep Learning Boost on CPU | Yes |
| AI Software Frameworks Supported | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Marketing Status | Launched |
| Launch Date | Q4'24 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet, Workstation |
| Max Memory Size | 192 GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Maximum Memory Speed | 6400 MHz |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | Yes |
| GPU Name | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 2 GHz |
| GPU Peak TOPS (Int8) | 8 |
| Graphics Output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| Xe-cores | 4 |
| Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS), 8K @ 60Hz (HDMI 2.1 FRL) |
| Max Resolution (DP) | 8K @ 60Hz |
| Max Resolution (eDP) | 4K @ 60Hz |
| DirectX Support* | 12 |
| OpenGL Support* | 4.5 |
| OpenCL Support* | 3 |
| Intel® Quick Sync Video | Yes |
| # of Displays Supported | 4 |
| Device ID | 0x7D67 |
| Intel® Deep Learning Boost on GPU | Yes |
| NPU Name | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported by NPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1x16+2x4, 2x8+2x4, 1x8+4x4 |
| Max # of PCI Express Lanes | 24 |
| Sockets Supported | FCLGA1851 |
| Thermal Solution Specification | PCG 2020A |
| Max Operating Temperature | 105°C |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Gaussian & Neural Accelerator | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Thermal Velocity Boost | Yes |
| Intel® Turbo Boost Max Technology 3.0 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel vPro® Eligibility | Intel vPro® Enterprise, Intel vPro® Platform |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Active Management Technology (AMT) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Remote Platform Erase (RPE) | Yes |
| Intel® One-Click Recovery | Yes |
| Intel® Hardware Shield Eligibility | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology with Redirect Protection | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
