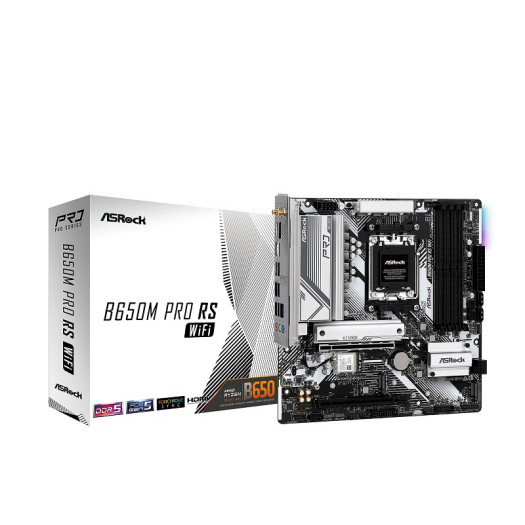

ASRock B650M Pro RS WiFi AM5 AMD B650 Micro ATX Motherboard

ASRock B650M Pro RS WiFi AM5 AMD B650 Micro ATX Motherboard

ASRock B650M Pro RS WiFi AM5 AMD B650 Micro ATX Motherboard

Availability:In Stock

ASRock B650M Pro RS WiFi AM5 AMD B650 Micro ATX Motherboard

BHD 69.900

– +

Product specification
Reviews (0)

Model
Brand	ASRock
Model	B650M Pro RS WiFi

Supported CPU
CPU Socket Type	AM5
CPU Type	Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipsets
Chipset	AMD B650

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Performance Profile	Intel XMP 3.0 / AMD EXPO
ECC Supported	Yes
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 4.0 x16	1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 3.0 x16	1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Other Slots	* Supports NVMe SSD as boot disks

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* *Supports NVMe SSD as boot disks
SATA RAID	0/1/10

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	Bluetooth 5.2 + High speed class II

Rear Panel Ports
Back I/O Ports	2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). ***CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

Features
Features	Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker

Packaging
Package Contents	1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
