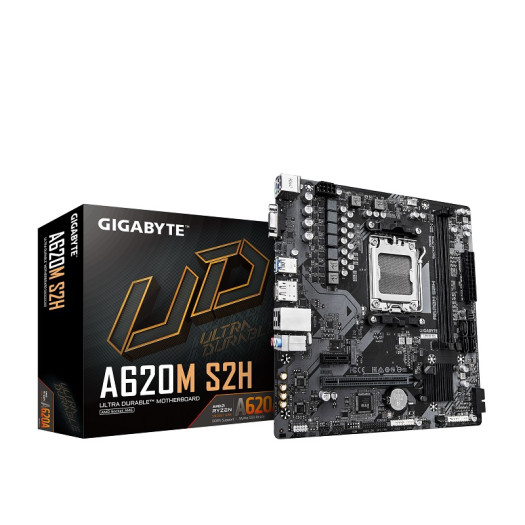

GIGABYTE A620M S2H AM5 M-ATX Motherboard
GIGABYTE A620M S2H AM5 M-ATX Motherboard
Availability:In Stock
GIGABYTE A620M S2H AM5 M-ATX Motherboard
(0 reviews)
BHD 44.900
– +
Model
BrandGIGABYTE
ModelA620M S2H
Supported CPU
CPU Socket Type AM5
CPU TypeRyzen 7000 Series
Chipsets
Chipset AMD A620
Memory
Number of Memory Slots2x288pin (DDR5)
Memory StandardSupport for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Maximum Memory Supported96GB
Channel Supported Dual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
Memory Feature2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Expansion Slots
PCI Express 4.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Audio Channels 7.1 Channels
Onboard LAN
LAN ChipsetRealtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Max LAN Speed1Gbps
Rear Panel Ports
Back I/O Ports4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
Physical Spec
Form FactorMicro ATX
Dimensions (W x L)23.0cm x 22.5cm
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Software Feature
Windows 11Supported
Features
FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
