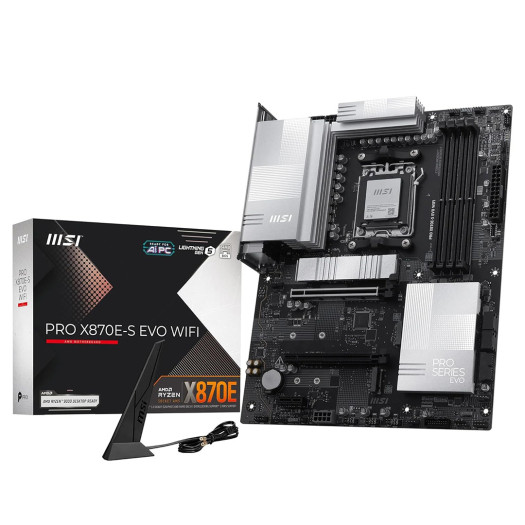

PRO X870E-S EVO WIFI
Business Elegance
The PRO X870E-S EVO WIFI is a creation-oriented ATX motherboard with a 12 Duet Rail Power System, constructed around the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5)
- Ultra Power: 12 Duet Rail Power System with 60A SPS, 6-layer PCB, Server Grade PCB material
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / up to 8200+ MT/s OC)
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
- Lightning Gen5 & Gen4 M.2 slots
- Ultra Connect: USB4 Type-C (40Gbps), Realtek 5G LAN, Wi-Fi 7 solution, Bluetooth 5.4
- 8-Channel (7.1) HD Audio with Audio Boost
- EZ DIY: EZ PCIe Clip II, EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The PRO X870E-S EVO WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD X870E
Ultra Power - 12 Duet Rail Power System with 60A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO X870E-S EVO WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 12 Duet Rail Power System (60A / SPS)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (Up to 8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
*Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
