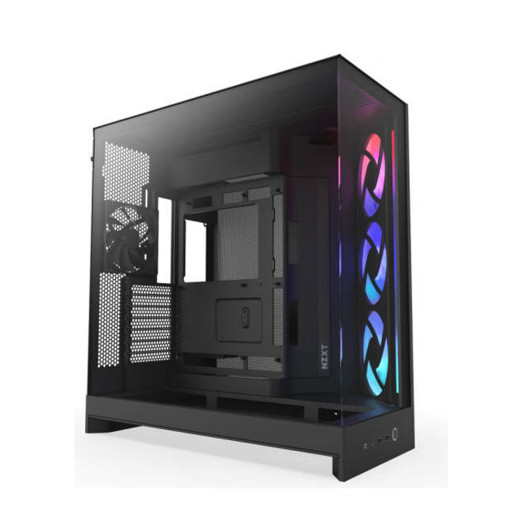

NZXT H9 Flow RGB, Dual-Chamber ATX Mid-Tower Case High-Airflow Design with Panoramic Tempered Glass, Supports Dual 360mm Radiators, Up to 10 Fans, Up To E-ATX Compatibility, Black | CM-H92FB-R1
Specification
| Category | Specification |
|---|---|
| Dimensions | Height: 506 mm (19.9 in), Width: 315 mm (12.4 in), Depth: 481 mm (18.9 in) |
| Volume: 76.7 L, Weight: 12.46 kg (27.47 lb) | |
| Enclosure Type | Mid-Tower |
| Motherboard Support | E-ATX (up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Rear-Connect Support | Yes (Micro-ATX – BTF, Project Zero) |
| Materials | SGCC steel, tempered glass (clear for white, tinted for black) |
| CPU Cooler Clearance | Up to 165 mm |
| GPU Clearance | Up to 459 mm (with <56 mm fans) / 410 mm (with 56 mm thick 420mm AIO and fans) |
| PSU Clearance | Up to 200 mm |
| Top Rad + Fan Clearance | 80 mm (360 mm) / 62 mm (420 mm) |
| Front I/O Ports | 2 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen2x2 Type-C, 1 × Headset Jack |
| Expansion Slots | 7 Standard, 0 Vertical |
| Drive Bays | 2.5": 4 + 2, 3.5": 2 |
| Fan Support | Front: 3 × 120 mm / 3 × 140 mm (1 × F420 RGB Core included) |
| Top: 3 × 120 mm / 3 × 140 mm | |
| Bottom: 3 × 120 mm / 3 × 140 mm | |
| Rear: 1 × 120 mm (1 × F120Q (CV) included) | |
| Radiator Support | Front-Right: up to 420 mm, Top: up to 420 mm, Bottom: up to 360 mm, Rear: 120 mm |
| Fan – F420 RGB Core | Speed: 2,000 ± 200 RPM, Airflow: 98.61 CFM, Pressure: 3.2 mmH₂O, Noise: 34.5 dBA |
| Connector: 8-pin w/ splitter | |
| Fan – F120Q (CV) | Speed: 1,350 ± 150 RPM, Airflow: 60.2 CFM, Pressure: 1.05 mmH₂O, Noise: 24.1 dBA |
| Connector: 3-pin |
